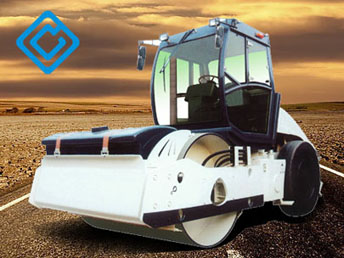

GMC-SD01 Single Drum Road Roller



GMC-SD01 single drum road roller is manufactured based on the most advanced technique home and abroad. The weight of this Single-Drum Vibratory Roller is seven ton, which is specially suited for road construction, parking area, and industrial field. The multipurpose and flexibility of this single-drum hydraulic road roller is also suited for constructing sidewalk, and such kind of Restricted zones. GMC-SD01 Single Drum Road Roller


Mechanical travel drive, hydraulic vibration, articulated steering help the whole Vibrating Roller with optimal function/cost performance and reliable performance.


Hand brake and foot pedal brake assure the single-drum roller’s safety and dependability.


The front wheel is vibrated and the behind wheel is smooth-wheel which drive the whole vibrating roller, and the roller is articulated steering and auto-watering on the front and back wheel. The heavy duty roller is compaction equipment used for asphalt road surface, basic layer, hypo-layer and road filled.


The single-drum vibratory roller is mostly worked with the spreading asphalt roller machine. Because of the very width vibrated wheel<1.7m> and the fine pressing speed which bring the great working ability.


Adoption of the high grade engine of 495 shift gears behind the vibrating roller, and completely opening cover offer the optimal the space of maintaining.


Auto-watering on the front and back wheel spacious and comfortable cab.



We are specialized in producing high quality single drum road roller, hydraulic road roller, and vibrating roller with best price and good service! Welcome to order!



GMC-SD01 Single Drum Road Roller


Vibration
Static linear load 202N/cm
Vibration frequency 50Hz
Vibration amplitude 0.4mm
Inspire force 70Kn



Machine specification
Turning radius 5000mm
Tyre size 12.00-24-16



Drive
1st gear 2.2km/h
2nd gear 4.7km/h
3rd gear 15km/h
Max travel speed 15km/h


Machine dimension
Overall dimensions (LXWXH) 5180×1880×2680mm
Drum width 1700mm
Drum diameter 1220mm
Wheelbase 2750mm
Fuel tank capacity 110
Fuel tank capacity 110L
Electrical voltage 12V
Hydraulic tank capacity 110L
Sprinkler tank capacity 300L



Diesel engine
Model 495AY
Diesel power 36.75Kw

Min. ground clearance 0.4mm
