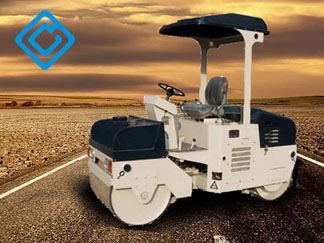

GMC-DD02 Double Drum Road Roller



GMC-DD02 double drum road rollerDouble Drum Road Roller is a small-size tandem vibratory roller, which can be applied to roads constructing and maintaining and the rolling of expressway shoulder, side walk, parking area, sports ground and garden lawn. This road compactor is especially suited for compaction of pipeline channel and drainage trench and such narrow areas.


GMC-DD02 double drum road roller adopts mechanical driving, hydraulic vibration, articulated and hydraulic steering with easy operation, reliable performance, and cost performance. Sludge scrapers and sprinkling devices on both drums help to develop the quality of road construction.


The compact design, small size and beautiful appearance of GMC-DD02 tandem vibratory road roller are suited for compaction of narrow areas.


High quality and high efficiency ChangChai diesel engine with large power output reserve capacity, reliable performance, stable quality, low fuel consumption, convenient operation and maintenance.


We are specialized in producing high quality double drum road roller, road compactor, tandem vibratory roller with best price and good service! Welcome to order!




Data of GMC-DD02 Double Drum Road Compactor



Machine specification
Vibration frequency 50Hz
Drum width 900mm
Drum diameter 750mm
Min steering radius 4300mm
Tread width 1980mm



Weight
Operating mass 2500kg
Front axle load 1080kg
Rear axle load 1420kg
Front static linear load 120N/cm
Rear static linear load 157.8N/cm



Machine dimension
Overall dimensions (LXWXH) 2765X1060X2550mm

Drive
First speed 2km/h
Second speed 5.6km/h
Theoretical Grade ability 20%

Diesel Engine
Model:  CZ380Q
Exciting Force 25KN
Type 4-stroke direct injection
Rated power 14.7KW
Rated roll-speed 2200r/min
