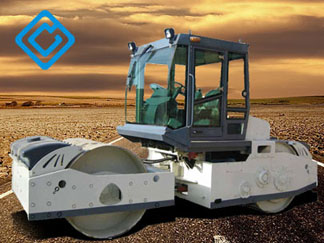

GMC-DD07 Double Drum Road Roller



This GMC-DD07 double-drum vibration road roller is a kind of mechanically driven hydraulic vibrating roller which is manufactured in accordance with advanced foreign technologies and on the basis of selectingDouble Drum Road Roller top-quality domestic critical parts and components. This vibration road roller features strong engine power output capacity, large power output reserve capacity, wide rolling wheel, high operation efficiency, novel design, compact structure, reasonable layout and beautiful shape.


These Vibration Road Roller are general compaction equipments for highway, municipal road, parking area and industry ground etc, which is suitable for asphalt compaction, soil compaction, sand stone mixtures and dry cement compaction.


GMC-DD07 static double-drum roller adopts mechanical driving, hydraulic vibration, articulated and hydraulic steering with easy operation, reliable performance, and cost performance.


Spacious and comfortable cab is with dual operator seats and dual steering wheels.


The engine of our static road roller is Dongfeng Cummins diesel engine, and it is an environment-production, and low fuel consumption. Additionally, with cold start feature.


We are specialized in producing high quality vibrating roller, vibration roller, double-drum roller with best price and good service! Welcome to order!




Data of GMC-DD07 Double Drum Road Compactor



Diesel engine
Model 4BT3.9-C60
Hydraulic tank capacity 120L
Front water tank 280L
Rear water tank 280L



Weight
Operating mass: 10000kg
Front axle load 4500kg
Rear axle load 5500kg
Static linear load 323N/cm



Vibration
Vibration amplitude 0.35mm
Vibration frequency 50Hz



Drive
1st speed 2.5km/h
2nd speed 5.5km/h
Theoretical Grade ability 25%



Machine dimension
Overall dimensions (LXWXH) 5390X2030X2980mm
Drum width 1700mm
Drum diameter 1260mm



Machine specification
Steering angle: 30 degree
Inside turning radius 4300mm
Outside turning radius 6000mm
Tread width 3150mm

Ground clearance 310mm
