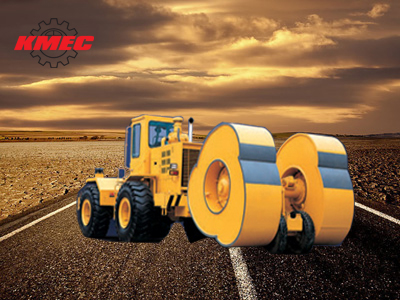

This impact compactor can endure the strong impact force structurally; each component is adopted with the reliable
measure to avoid loosing to ensure the structural strength; three-stage shock absorption mechanism including energy storage, hydraulic cylinder and compressed spring on traction shaft is designed to reduce the impact force against each mechanism and relieve the influence to the tractor from the impact.
Features of this impact compactor
High production efficiency
The foundation of 20000㎡ can be compacted per hour;
The average working speed is 10-15Km/h;
The compacting-involved depth is 5m; the effective compacting depth is 1m;
The filling thickness is 800-1200mm per time;
The working efficiency is 8~10 times than that of other construction machinery.
Main technical parameters of compactor
| Equipment model | Unit | 6825A | 6830 |
| Working weight | kg | 16000 | 16200 |
| Impact energy | kJ | 25 | 30 |
| Best working speed | km/h | 10-15 | 10-15 |
| Compacting width | mm | 2X900 | 2X900 |
| Charged pressure of energy storage | MPa | 3.5-4.0 | 3.5-4.0 |
| Tyre pressure | MPa | 0.75-0.80 | 0.75-0.80 |
| Tractor power | kW | ≥235 | ≥235 |
| Liquid charged pressure of energy storage | MPa | 4-6 | 4-6 |
| Shape of impact wheel | Pentagon | Triangle | |
| Overall dimension (length X width X height) | mm | 4086X2960X2130 | 4065X2960X2170 |
